Stud Gun Setup Guide for CD Studs using a Collet Insert

Follow these step-by-step instructions to properly set up your stud gun to weld CD studs.

This setup works for Proweld, Midwest Fasteners, Erico, H.A. Jones, and SWS stud welder guns.

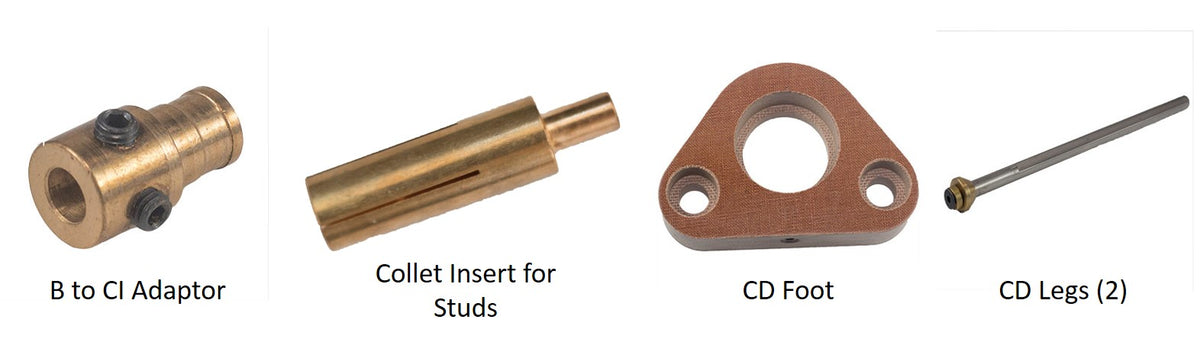

Required Parts

✓ "B" to CI Adaptor
✓ Collet Insert
✓ CD Foot
✓ CD Legs

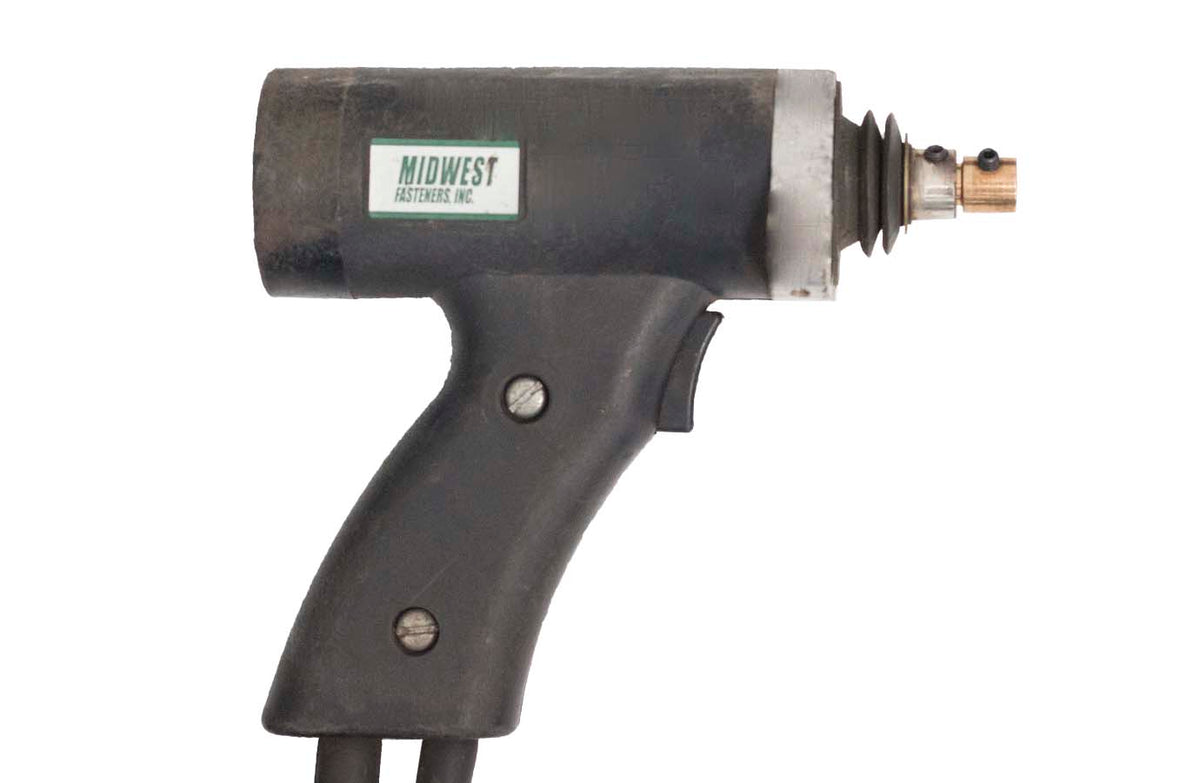

STEP 1 - Insert Adaptor

Place the B to CI Adaptor inside the gun. Tighten the set screws.

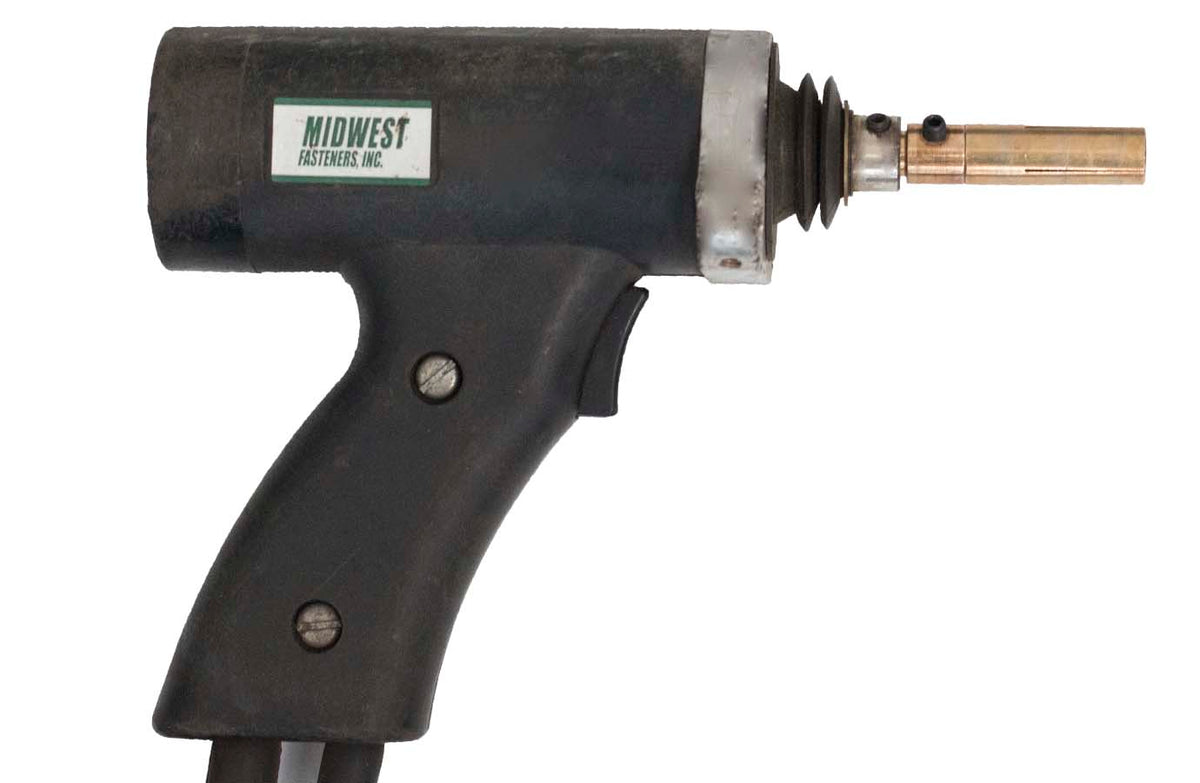

STEP 2 - Insert Collet Insert

Place the Collet Insert into the B to CI Adaptor. Tighten the screws on the B to CI Adaptor.

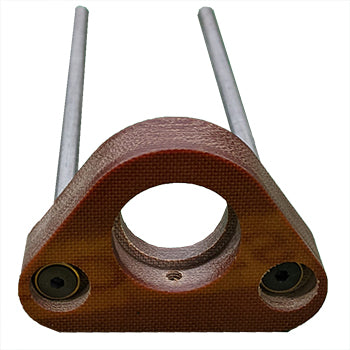

STEP 3 - Make the Foot Assembly

Screw the CD Gun Legs into the foot.

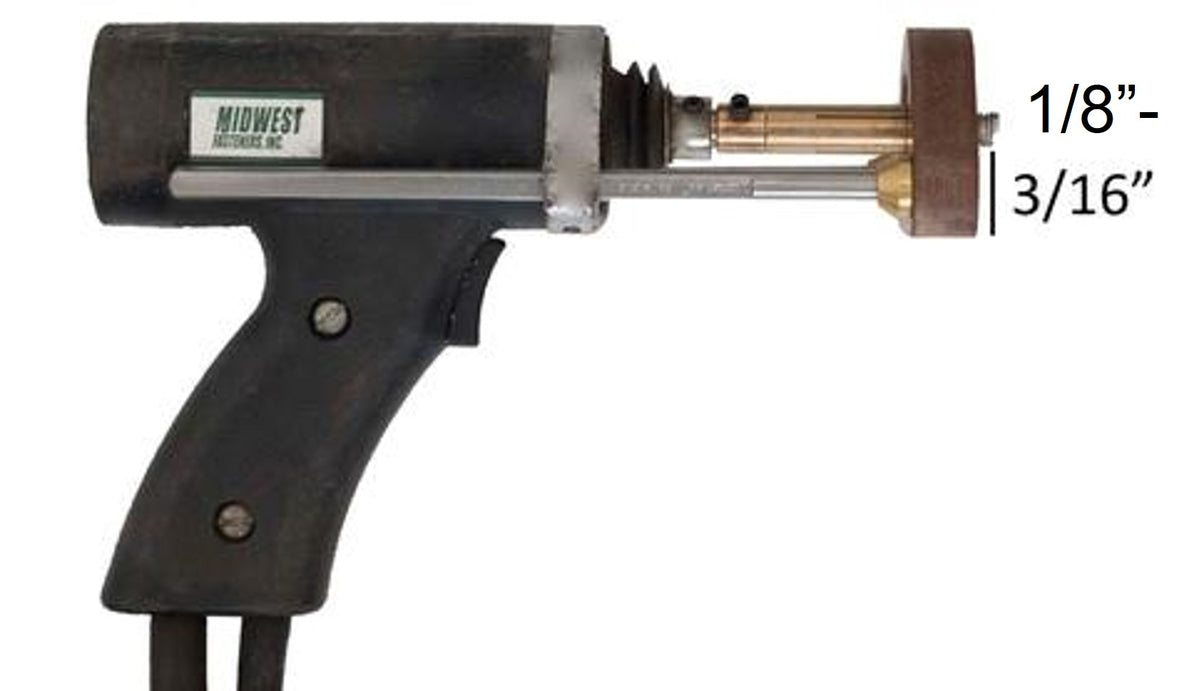

STEP 4 - Assemble the stud gun

Slide the foot piece assembly (CD foot and 2 CD Legs) into holes in the face plate. Line up the legs so the legs lines up with the face plate. Adjust so the CD stud sticks out past the foot 1/8" - 3/16" (the plunge). Tighten the set screws in the face plate.

✓

Setup Complete

Your stud welding gun is now properly configured and ready for use. For additional support or questions, contact our technical team.
